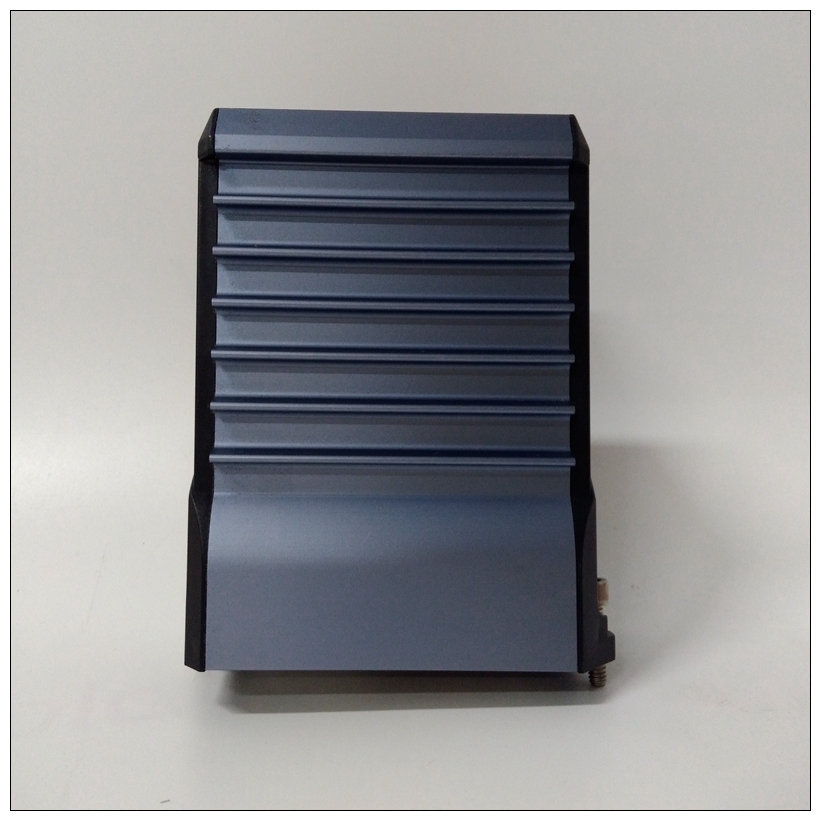

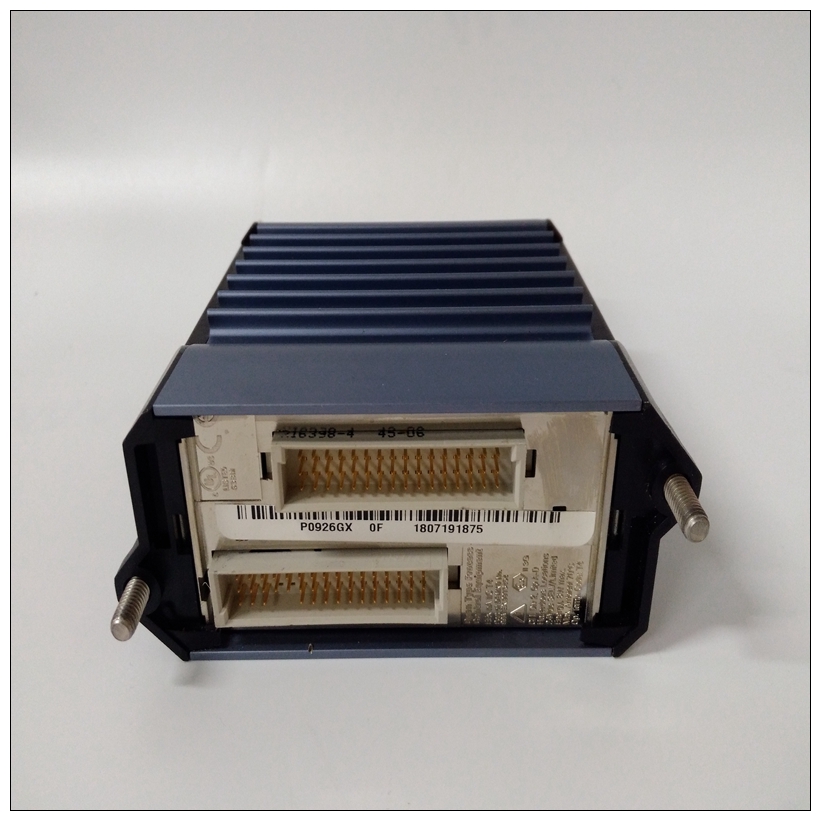

FBM233 P0926GX輸入輸出模塊，F(xiàn)OXBORO使用速度
特征從120 VAC、240 VAC運行三個輸出電壓，總計100瓦+5 VDC輸出高達18安培+12 VDC輸出高達2安培-12 VDC輸出高達1安培滑入式機架安裝結構電子短路過流保護單電源雙機架運行功能100瓦電源模塊是一個機架安裝單元，直接插入機架最左側插槽中安裝在48針背板上的連接器。
FBM233 P0926GX輸入輸出模塊它提供+5伏、+12伏和-12伏電源和邏輯至背板的電平排序信號。電源可以在單個機架中使用應用程序，或也可用于向第二個機架，如果總負載在電源額定值范圍內。通過預接線電纜與第二個機架互連（參見上一頁的訂購說明電源輸出將經過一個周期滿載時輸入功率的總損失。為過流和過壓故障條件提供保護。電源的操作該電源模塊可以通過以下任一方式操作：120伏或240伏標稱線路（這是跳線選擇，如第3頁所示）。對于這兩個范圍電源可接受的輸入電壓范圍為90至132 VAC或180至264 VAC，47至63 Hz。過電壓保護電源包括電子過電壓保護電路。該電路將關閉輸出如果5伏總線超過6.2+0.5伏，則電源必須關閉才能重置。外部過電壓觸發過電壓保護的輸出不會導致電源保險絲斷開。但是，如果電源中存在內部故障由于過電壓情況，保險絲可能會斷開。用3AG 3安培250伏保險絲更換此保險絲。
Features
Operation from 120 VAC, 240 VAC
Three output voltages, 100 watts total
+5 VDC output up to 18 amps
+12 VDC output up to 2 amps
-12 VDC output up to 1 amp
Slide-in rack mount construction
Electronic short circuit overcurrent protection
Two rack operation from a single power supply
Functions
The 100 Watt Power Supply Module is a rack-mountedunit that plugs directly into a 48-pin backplanemounted connector in the leftmost slot in the rack. It
provides +5 volt, +12 volt and -12 volt power, and logic
level sequencing signals to the backplane.
This power supply may be used either in a single rack
application, or may also be used to provide power to a
second rack if the total load is within the supply rating.
Interconnection to the second rack is through a prewired cable (see the ordering instructions on the last
page of this data sheet)The power supply output will ride through a one-cycle
total loss of input power at full load. Protection is provided for overcurrent and overvoltage fault conditions.
Operation of the Power Supply
This Power Supply Module can operate from either a
120 voltor 240 volt nominal line (this is jumper selectable, as illustrated on page 3). For these two ranges, the
power supply can accept an input voltage range of from
90 to132 VAC or from 180 to 264 VAC, 47 to 63 Hz.Overvoltage Protection
The power supply includes an electronic overvoltage
protection circuit. This circuit will turn the output off
if the 5 volt bus exceeds 6.2 +0.5 V. The power supply
must be turned off to be reset. External overvoltage
on the output that triggered the overvoltage protection will not cause the power supply fuse to open.
However, if an internal fault in the power supply
caused the overvoltage condition, the fuse may open.
Replace this fuse with a 3AG 3 amp, 250 volt fuse.
