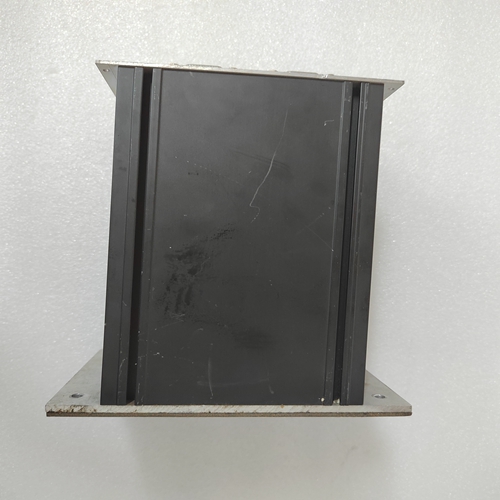

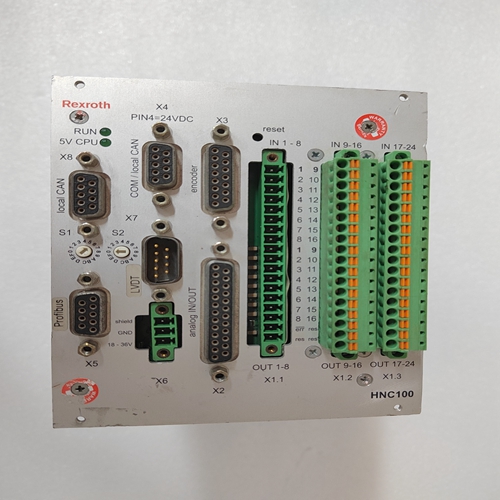

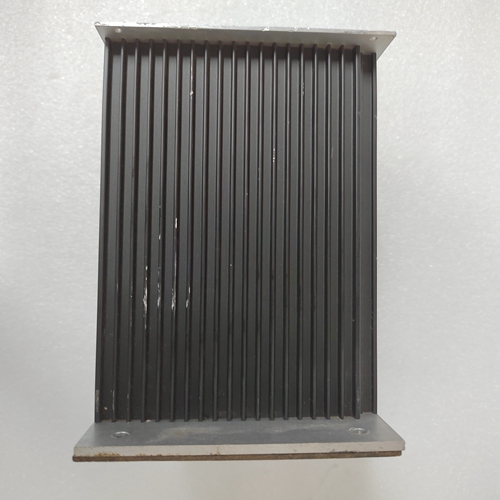

SYHNC100-NIB-2X/W-24-P-D-E23-A012驅動模塊
INDRAMAT的電子驅動組件配備有：廣泛的安全功能，并在技術上防止過載盡最大可能。
應注意以下指南，以防止不當處理：開機前檢查：
–僅在控制器輸入端連接相應的電壓在數據表和連接計劃中列出！
–不要將輸出連接到外部電壓！
–檢查以確定24V和+15V輸出端子沒有錯誤連接！檢查低電壓5、+15、-15和24伏是否已與電源電位安全隔離，未從外部與或接觸
?電力電纜，
?鏈路電路電纜（L+、L-）或
?電機電源電纜的連接！
它們必須彼此充分絕緣！
–當使用外部電壓檢查控制柜接線時確保沒有無效電壓可以到達電子設備的端子組件！
為了確保安全，在檢查之前，先夾緊連接！
–高壓檢查：
INDRAMAT的電子驅動部件已經過電壓檢查
根據VDE 0160進行詳細測試。檢查工業機械電氣設備的高壓
控制柜接線，拆除或夾緊所有電子連接，以避免損壞電子部件（適用于VDE 0113，EN 60204）！
以下INDRAMAT產品是電子設備的一部分：TVM、TVD、TDM、TWM、TFM、TBM、TCM、KDV、TVR、KDR、KVR、KDS、KDW、KDA、KDF、RAC、DSC3以及反饋和MAC電機和2AD的編碼器電子設備。
靜電負載危害電子元件。那些身體可與連接端子、部件和適配器板必須通過接地進行放電。
–在觸摸之前，通過觸摸導電的，接地物體（如普通接地金屬）。
–焊接時，將烙鐵接地！
–將正在使用的零件和工具放置在導電的接地系統上
表面
諸如適配器板或編程模塊的危險部件，只能在導電包裝中儲存和運輸。
INDRAMAT’s electronic drive components have been equipped with
extensive safety features and technically secured against overloads to
the greatest extent possible.
The following guidelines should be noted to prevent improper handling:
Check before switching on:
– Only connect voltages at the controller inputs that correspond to those
listed in the datasheets and connection plans!
– Do not connect outputs to an external voltage!
– Check to ascertain that the 24V and the +15V output terminals have not
mistakenly been connected! Check whether the low voltages, 5, +15, -15 and 24 volts, have been
securely separated from the mains potential, have not been externally
connected with or come into contact with the
? power cables,
? link circuit cables (L+, L-), or,
? connections to the motor power cables!
They must be sufficiently insulated against each other!
– When checking the control cabinet wiring with outside voltages, make
sure that no invalid voltages can reach the terminals of the electronic
components!
Just to be sure, clamp the connections off before checking!
– High-voltage checks:
INDRAMAT’s electronic drive components have been voltage-checked
in detailled tests in accordance with VDE 0160. When checking the
high-voltage of the electrical devices of industrial machinery and the
control cabinet wiring, remove or clamp off all the electronic connections to avoid damaging the electronic components (applicable acc. to
VDE 0113, EN 60204)!
The following INDRAMAT products are a part of the electronic equipment: TVM, TVD, TDM, TWM, TFM, TBM, TCM, KDV, TVR, KDR,
KVR, KDS, KDW, KDA, KDF, RAC, DSC3 as well as the feedback and
encoder electronics of the MAC motors and 2AD.
Electrostatic loads endanger electronic components. Those bodies that
can come into contact with connecting terminals, components and
adaptor boards, must be discharged by grounding them.
– Before touching, discharge your own body by touching a conductive,
grounded object (e.g., plain grounded metal).
– When soldering, ground the soldering iron!
– Place the parts and tools being used on a conductive, grounded
surface.
Endangered parts, such as adaptor boards or programming modules,
should only be stored and transported in conductive packaging.
