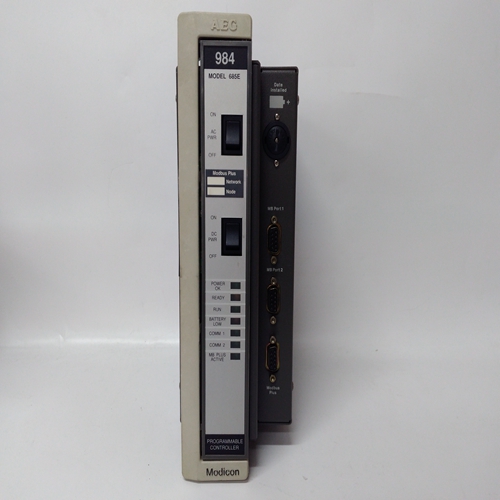

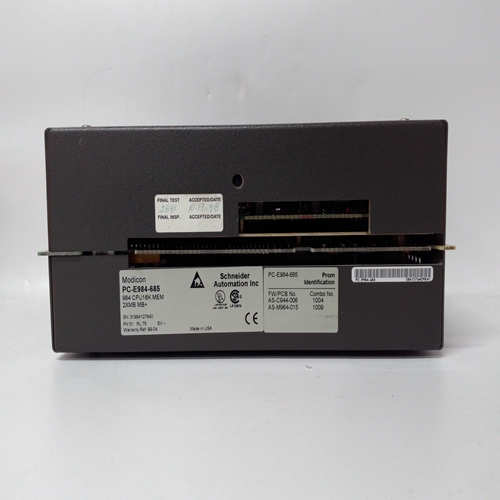

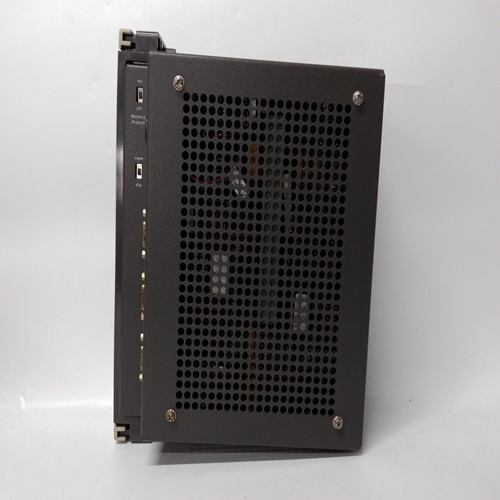

PC-E984-685繼電器模塊
SUB_功能塊對這兩個輸入信號。任何未使用的輸入都將設置為0.0。
所有輸入應具有相同的工程單位。If單位不一致，可以使用SCL功能塊或另一種方法是使用內置的第m個功能塊縮放函數。在固件1.30及更高版本中，TAN_功能塊接受弧度輸入和輸出該角度的切線。TH_功能塊可以保存一個初始值，該值將：上電時傳輸至塊輸出O1，可以：用于在輸入TC為高（1）時跟蹤電視輸入。
在1.30固件或更高版本中，保持值可以是當TH_時，使用脈沖發生器在線改變。O1區塊輸出直接連接到ODC中的X或Y輸入塊脈沖發生器制造所使用的范圍和分辨率在線變化將由X范圍或Y確定
Range inputsTOT_功能塊接受布爾輸入，并且將保留輸入轉換的運行總數，作為塊輸出作為與其他塊互連的實際值控制器中的塊?？梢灾刂眠\(yùn)行總數
當輸入R變高時（1）。輸入R在在每個掃描周期讀取輸入S。
未配置的輸入將設置為0。當EDGETRIG參數設置為1，則總數將輸入S上的每個0到1轉換的增量。當如果EDGETRIG參數設置為0，則總數將每次1到0轉換時遞增。
在熱啟動和熱啟動期間，總數將保留并且在冷啟動時將被初始化為0.0。TSW_功能塊選擇兩個模擬輸入中的一個信號作為輸出信號。輸入A變成輸出當輸入SC為低（0）時，輸入B將為輸出當輸入SC變高時（1）。
未配置的輸入將默認為SC=low（0）、A=0.0，B=100.0。XOR_功能塊執行邏輯異或
在所有三個輸入上運行。未使用的輸入將導致塊用作雙輸入XOR。異或輸出
當所有配置輸入均為低（0）時，將為低電平（0），或當所有配置的輸入為高（1）時。4.0工廠配置選項
工廠配置的選項提供了一種簡單的方式來配置352Plus、353或354型如果工廠配置選項（FCO）將提供一個完整的、功能齊全的回路控制器，只要輸入/輸出正確進行連接?？梢詫?duì)FCO進行更改，以滿足個別要求。上的FCO列表以下頁面記錄了與第3節中列出的默認值不同的參數。
SUB_ function blocks perform arithmetic subtraction on
the two input signals. Any unused input will be set to 0.0.
All inputs should have the same engineering units. If units
are not consistent, a SCL function block can be used or an
alternative is to use a MTH function block that has built-in
scaling functions. TAN__ function blocks, in firmware 1.30 and higher, accept a
radian input and output the tangent of that angle. TH_ function blocks can hold an initial value that will
transfer to the block output O1 on power up and it can be
used to track the TV input when input TC is high (1).
In 1.30 firmware or greater, the HOLD value can be
changed on line, using the pulser, when the TH_.O1 block
output is directly connected to X or Y inputs in an ODC
block. The range and resolution used by the pulser making
on line changes will be determined by the X Range or Y
Range inputsTOT_ function blocks accept a Boolean input and they
will retain a running total of the input transitions as the
block output as a real value for interconnection to other
blocks in the controller. The running total can be reset
when input R goes high (1). Input R is executed prior to
reading input S on each scan cycle.
Unconfigured inputs will be set to 0. When the
EDGETRIG parameter is set to 1, the total will
increment on each 0 to 1 transition on input S. When
the EDGETRIG parameter is set to 0, the total will
increment on each 1 to 0 transition.
The total will be retained during a WARM & HOT start
and will be initialized to 0.0 on a COLD start. TSW_ function blocks select one of two analog input
signals as the output signal. Input A becomes the output
when input SC is low (0) and input B will be the output
when input SC goes high (1).
Unconfigured inputs will default to SC=low(0), A=0.0,
B=100.0. XOR_ function blocks perform a logical exclusive OR
function on all three inputs. An unused input will cause the
block to function as a two input XOR. The XOR output
will be low (0) when all configured inputs are low (0) or
when all configured inputs are high (1). 4.0 FACTORY CONFIGURED OPTIONS
Factory Configured Options provide an easy way to configure a Model 352Plus, Model 353, or Model 354. In most
cases a Factory Configured Option (FCO) will provide a complete, functional loop controller, once the proper I/O
connections are made. Changes can be made to an FCO to meet individual requirements. The FCO listings on the
following pages document the parameters that are different than the default values listed in section 3.
