NI PXIE-7862 786672-01數據采集卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
NI PXIe-7862 (型號：786672-01) 數據采集卡主要應用于以下領域：
硬件在環（HIL）測試：
- 適用于模擬和驗證控制系統，特別是在航空航天、汽車和電力電子等行業。通過精確控制和實時數據采集，確保系統在真實環境中的表現。
自動化測試：
- 用于測試設備的自動化系統，如工業設備、通信系統、電子組件等，進行高效的數據采集與信號處理，減少人工干預，提高測試效率。
機器人控制與仿真：
- 在機器人系統中，支持多通道采集、信號處理和實時控制，特別是在進行復雜運動控制、傳感器數據同步等方面。
自定義信號處理和數據分析：
- 適合需要精確控制信號流和數據處理的應用，如自定義測量任務、數據分析和實時反饋，特別是在研究和開發（R&D）實驗室環境中。
傳感器仿真與數據采集：
- 在傳感器模擬和數據采集任務中，廣泛應用于環境監測、健康監測、結構健康監測等領域，提供高精度和高頻率的數據輸入。
測試與驗證通信協議：
- 支持自定義通信協議的驗證，特別是在通信硬件開發過程中，如無線通信、網絡協議分析等。
精密控制系統：
- 用于精確的控制任務，如飛行控制系統、自動駕駛系統等領域，提供高性能的數據采集和實時反饋，確?？刂凭?。
醫學影像處理：
- 在醫學設備中，應用于影像處理和分析，提供高分辨率數據采集能力，支持精準的影像采集和處理算法。
這些領域都依賴于NI PXIe-7862卡提供的高性能數據采集、靈活的信號處理能力和可編程FPGA的自定義能力，滿足不同的工業和科研需求。
英文資料：
The NI PXIe-7682 (model: 786672-01) data acquisition card is mainly used in the following fields:
Hardware in the Loop (HIL) testing:
Suitable for simulating and validating control systems, especially in industries such as aerospace, automotive, and power electronics. By precise control and real-time data collection, ensure the performance of the system in real environments.
Automated testing:
An automation system used for testing equipment, such as industrial equipment, communication systems, electronic components, etc., to efficiently collect data and process signals, reduce manual intervention, and improve testing efficiency.
Robot Control and Simulation:
In robot systems, multi-channel acquisition, signal processing, and real-time control are supported, especially in complex motion control and sensor data synchronization.
Custom signal processing and data analysis:
Suitable for applications that require precise control of signal flow and data processing, such as custom measurement tasks, data analysis, and real-time feedback, especially in research and development (R&D) laboratory environments.
Sensor simulation and data acquisition:
In sensor simulation and data acquisition tasks, it is widely used in fields such as environmental monitoring, health monitoring, and structural health monitoring, providing high-precision and high-frequency data input.
Testing and validating communication protocols:
Support the verification of custom communication protocols, especially in the development process of communication hardware, such as wireless communication, network protocol analysis, etc.
Precision control system:
It is used for precise control tasks, such as flight control system, auto drive system and other fields, to provide high-performance data acquisition and real-time feedback to ensure control accuracy.
Medical image processing:
In medical equipment, it is used for image processing and analysis, providing high-resolution data acquisition capabilities and supporting accurate image acquisition and processing algorithms.
These fields rely on the high-performance data acquisition, flexible signal processing capabilities, and customizable capabilities of programmable FPGAs provided by the NI PXIe-7682 card to meet different industrial and scientific research needs.

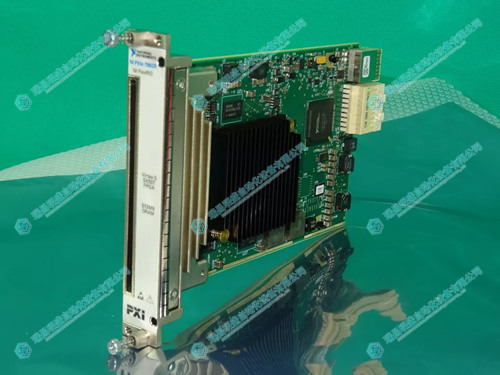

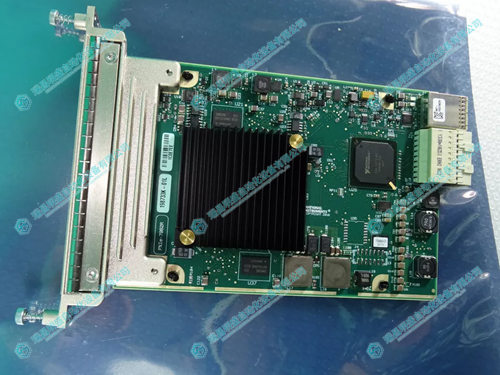

2.產 品 展 示
