ABB SYN5302a-Z,V277 自動同步器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB 的 SYCHROTACT 5 系列自動同步器型號 SYN5302a-Z,V277（產品編號：3BHB006716R0277）是一款高精度設備，專為電力系統中的發電機與電網或母線的安全并網操作而設計。該設備通過精確測量和比較不同電源的頻率、相位和電壓，確保在安全可靠的條件下實現同步操作。
主要功能和特點：
- 精確測量：實時監測電源的頻率、相位和電壓，確保同步精度。
- 自動控制：自動執行并網過程，減少人為干預，提高安全性。
- 多重保護：具備過壓、欠壓、過頻、欠頻等保護功能，保障設備和系統安全。
- 靈活應用：適用于不同類型的發電機和電力系統配置，具有較強的適應性。
技術參數：
- 型號：SYN5302a-Z,V277
- 產品編號：3BHB006716R0277
- 系列：SYCHROTACT 5
- 輸入：多路電壓和頻率輸入
- 輸出：同步信號、控制信號、報警信號
- 保護功能：過壓、欠壓、過頻、欠頻保護
應用領域：
- 發電廠：用于并聯發電機和同步電網操作。
- 配電系統：實現電力系統并聯和負荷轉移。
- 工業應用：適用于工業電網的同步和備用電源切換。
英文資料：
ABB's SYCHROTACT 5 series automatic synchronizer model SYN5302a-Z, V277 (product number: 3BHB006716R0277) is a high-precision device designed specifically for safe grid connection operations between generators and power grids or busbars in power systems. This device ensures synchronous operation under safe and reliable conditions by accurately measuring and comparing the frequency, phase, and voltage of different power sources.
Main functions and features:
Accurate measurement: Real time monitoring of the frequency, phase, and voltage of the power supply to ensure synchronization accuracy.
Automatic control: Automatically execute the grid connection process, reduce human intervention, and improve safety.
Multiple protection: It has protection functions such as overvoltage, undervoltage, overclocking, and underflocking to ensure the safety of equipment and systems.
Flexible application: Suitable for different types of generators and power system configurations, with strong adaptability.
Technical parameters:
model: SYN5302a-Z,V277
Product Code: 3BHB006716R0277
Series: SYCHROTACT 5
Input: Multiple voltage and frequency inputs
Output: synchronization signal, control signal, alarm signal
Protection Function: Overvoltage, Undervoltage, Overfrequency, Underfrequency Protection
Application areas:
Power plant: used for parallel generator and synchronous grid operation.
Distribution system: Implement parallel connection and load transfer of the power system.
Industrial application: Suitable for synchronous and backup power switching in industrial power grids.

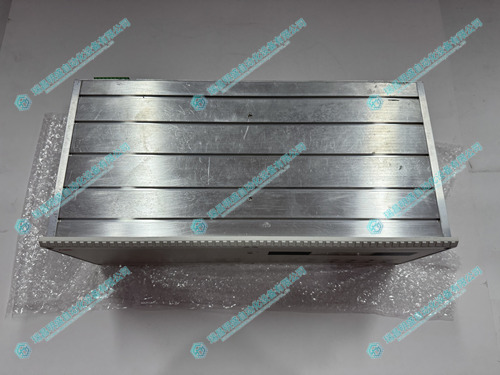

2.產 品 展 示
