GE IS200ESYSH1AAA 伺服終端電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE IS200ESYSH1AAA 是通用電氣（General Electric）設計的伺服終端電路板，屬于其 Mark VI 或 Mark VIe 控制系統系列的一部分。這種電路板通常應用于燃?xì)廨啓C或蒸汽輪機控制中，用于處理伺服閥驅動和控制信號的分配。以下是對該電路板的詳細描述和技術信息：
產品概述
- 型號：IS200ESYSH1AAA
- 類別：伺服終端電路板（Servo Terminal Board）
- 系列：Mark VI / Mark VIe 控制系統
- 主要功能：
- 提供伺服驅動信號連接的終端接口。
- 支持模擬信號輸入/輸出，用于控制和反饋伺服閥的精確位置。
主要特點
伺服控制支持：
- 提供對液壓或電液伺服閥的直接控制。
- 支持高精度的信號處理，用于伺服閥的位置、速度和壓力調節。
集成保護功能：
- 具備過載、短路保護，防止因電流過大或短路引發系統故障。
- 內置信號診斷功能，可檢測伺服回路故障。
模塊化設計：
- 與 Mark VI 或 Mark VIe 系統緊密集成，易于安裝和維護。
- 可直接插入系統框架，提供標準化的連接接口。
信號接口：
- 支持模擬和數字信號輸入輸出，適應多種控制需求。
- 提供伺服閥反饋信號的處理能力。
英文資料：
GE IS200ESYSH1AAA is a servo terminal circuit board designed by General Electric and is part of its Mark VI or Mark VIe control system series. This type of circuit board is commonly used in gas turbine or steam turbine control to handle the distribution of servo valve drive and control signals. The following is a detailed description and technical information of the circuit board:
Product Overview
model: IS200ESYSH1AAA
Category: Servo Terminal Board
Series: Mark VI/Mark VIe Control System
Main functions:
Provide a terminal interface for connecting servo drive signals.
Supports analog signal input/output for precise position control and feedback of servo valves.
main features
Servo control support:
Provide direct control of hydraulic or electro-hydraulic servo valves.
Supports high-precision signal processing for regulating the position, speed, and pressure of servo valves.
Integrated protection function:
Equipped with overload and short circuit protection to prevent system failures caused by excessive current or short circuits.
Built in signal diagnostic function, capable of detecting servo circuit faults.
Modular design:
Closely integrated with Mark VI or Mark VIe systems, easy to install and maintain.
It can be directly inserted into the system framework and provides standardized connection interfaces.
Signal interface:
Supports analog and digital signal input and output, adapting to various control requirements.
Provide the ability to process feedback signals from servo valves.

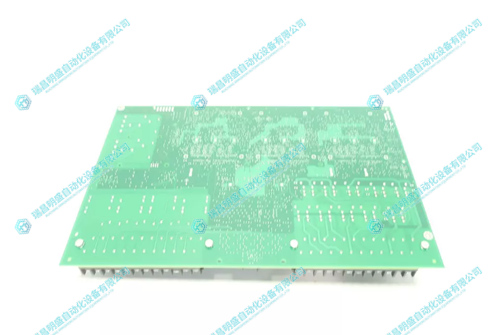

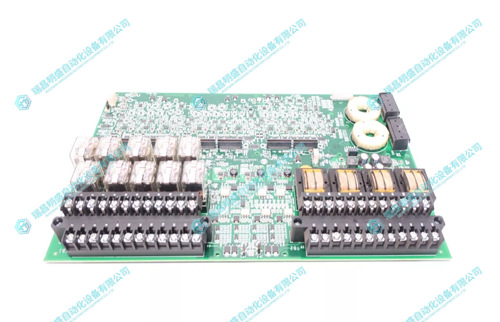

2.產 品 展 示
