Bently 3500/54 286566-01超速檢測模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/54 (286566-01) 超速檢測模塊 是一款專為工業旋轉機械設計的監測和保護設備。它用于對機械設備的超速、零轉速、以及轉速范圍內的性能進行實時監測，并提供可靠的報警和保護功能，廣泛應用于汽輪機、壓縮機和其他高速旋轉設備中。
產品概述
| 屬性 | 詳情 |
|---|---|
| 型號 | 3500/54 |
| 訂貨號 | 286566-01 |
| 設備類型 | 超速檢測模塊（Overspeed Detection Module） |
| 系列 | Bently Nevada 3500 系列 |
| 主要功能 | 超速保護、零速檢測、多速段監測 |
| 安裝位置 | 安裝于 3500 框架中，作為獨立保護模塊 |
關鍵特點
高效超速檢測：
- 具備專用超速保護功能，通過精準監測防止設備發生災難性故障。
- 支持多點設定的超速閾值，可靈活適配不同工況需求。
多通道設計：
- 提供 兩個監測通道，每個通道獨立工作，支持冗余或多點監控。
實時報警功能：
- 內置警告（Alert）和危險（Danger）報警機制，確保設備安全運行。
- 支持報警繼電器輸出，用于觸發保護動作或通知控制系統。
兼容多種傳感器：
- 支持與 Bently Nevada 的電渦流探頭、磁性傳感器和光學傳感器配合使用。
模塊化和可擴展性：
- 作為 3500 系列的一部分，與其他模塊如 3500/22 通信模塊無縫集成。
- 支持熱插拔，無需停機即可更換模塊，方便維護。
英文資料：
The Bently Nevada 3500/54 (286566-01) overspeed detection module is a monitoring and protection device designed specifically for industrial rotating machinery. It is used for real-time monitoring of mechanical equipment's overspeed, zero speed, and performance within the speed range, and provides reliable alarm and protection functions. It is widely used in steam turbines, compressors, and other high-speed rotating equipment.
Product Overview
Attribute Details
Model 3500/54
Order number 286566-01
Equipment type: Overspeed Detection Module
Bently Nevada 3500 Series
Main functions include overspeed protection, zero speed detection, and multi speed segment monitoring
Installed in the 3500 frame as an independent protection module
Key features
Efficient overspeed detection:
Equipped with dedicated overspeed protection function, it prevents catastrophic equipment failures through precise monitoring.
Support multi-point setting of overspeed threshold, which can flexibly adapt to different working conditions.
Multi channel design:
Provide two monitoring channels, each working independently and supporting redundant or multi-point monitoring.
Real time alarm function:
Built in Alert and Danger alarm mechanisms ensure the safe operation of the device.
Support alarm relay output, used to trigger protective actions or notify the control system.
Compatible with multiple sensors:
Supports use with Bently Nevada's eddy current probes, magnetic sensors, and optical sensors.
Modularity and Scalability:
As part of the 3500 series, it seamlessly integrates with other modules such as the 3500/22 communication module.
Support hot swapping, modules can be replaced without shutting down, making maintenance convenient.

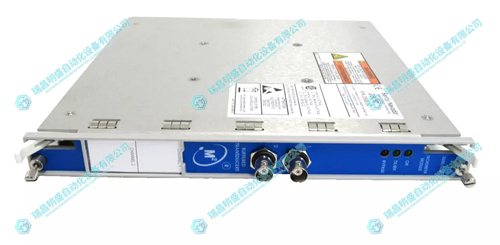

2.產 品 展 示
