WOODWARD 8200-1302伺服位置控制器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Woodward 8200-1302 是一款高性能的伺服位置控制器，專為工業和能源領域的精密控制應用設計。以下是對該產品的詳細介紹：
1. 產品概述
- 型號: 8200-1302
- 類型: 伺服位置控制器
- 品牌: Woodward
- 用途: 用于調節伺服閥、執行器或其他機械組件的位置，廣泛應用于發電、石油天然氣和工業自動化等領域。
2. 主要特點
精確位置控制
支持閉環位置控制，利用高分辨率的反饋機制，確保高精度的運動定位。多種輸入信號兼容性
兼容模擬、電流（如 4-20mA）和電壓（如 0-10V）輸入信號，適應各種控制系統。靈活的輸出配置
支持多種輸出模式（如 PWM、步進信號），滿足不同伺服設備的驅動需求。魯棒性與可靠性
工業級設計，具有抗振動、抗沖擊和抗電磁干擾能力，適用于惡劣工作環境。自診斷功能
內置自診斷和狀態監控功能，可快速檢測故障并發出報警，提高系統運行的可靠性。
3. 技術規格
輸入信號類型:
- 電壓輸入: 0-10V
- 電流輸入: 4-20mA
- 數字信號輸入: 開關量
輸出信號類型:
- 模擬輸出: 0-10V、4-20mA
- 數字輸出: PWM、開關量
控制模式:
- 閉環位置控制
- 開環位置驅動
電源要求:
- 24V DC（工業標準電源）
工作溫度范圍:
- -40°C 至 +70°C
安裝方式:
- DIN 導軌安裝或面板安裝
通信接口:
- RS-485、Modbus 或 CAN 總線（具體支持協議需參考型號細節）
英文資料：
Woodward 8200-1302 is a high-performance servo position controller designed for precision control applications in the industrial and energy sectors. The following is a detailed introduction to the product:
1. Product Overview
model: 8200-1302
Type: Servo Position Controller
Brand: Woodward
Purpose: Used to adjust the position of servo valves, actuators, or other mechanical components, widely used in fields such as power generation, oil and gas, and industrial automation.
2. Main features
Accurate position control
Support closed-loop position control, utilizing high-resolution feedback mechanism to ensure high-precision motion positioning.
Compatibility with multiple input signals
Compatible with analog, current (such as 4-20mA), and voltage (such as 0-10V) input signals, suitable for various control systems.
Flexible output configuration
Supports multiple output modes (such as PWM, stepper signals) to meet the driving requirements of different servo devices.
Robustness and reliability
Industrial grade design with anti vibration, anti impact, and anti electromagnetic interference capabilities, suitable for harsh working environments.
Self diagnostic function
Built in self diagnosis and status monitoring functions can quickly detect faults and issue alarms, improving the reliability of system operation.
3. Technical specifications
Input signal type:
Voltage input: 0-10V
Current input: 4-20mA
Digital signal input: switch quantity
Output signal type:
Analog output: 0-10V, 4-20mA
Digital output: PWM、 Switching quantity
Control mode:
Closed loop position control
Open loop position drive
Power requirements:
24V DC (industrial standard power supply)
Working temperature range:
-40 ° C to+70 ° C
Installation method:
DIN rail installation or panel installation
Communication interface:
RS-485, Modbus or CAN bus (specific supported protocols need to refer to model details)

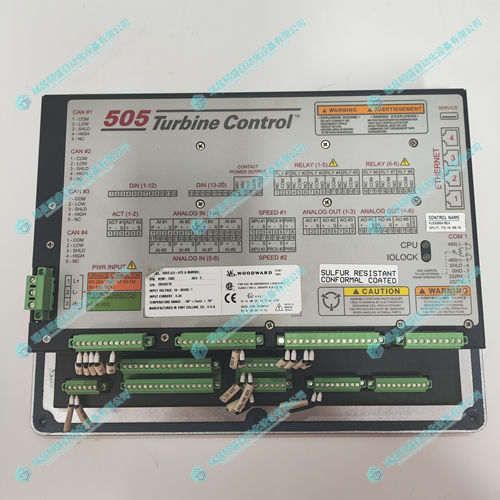

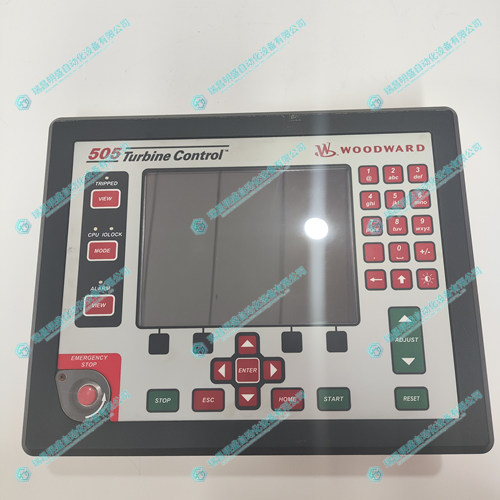

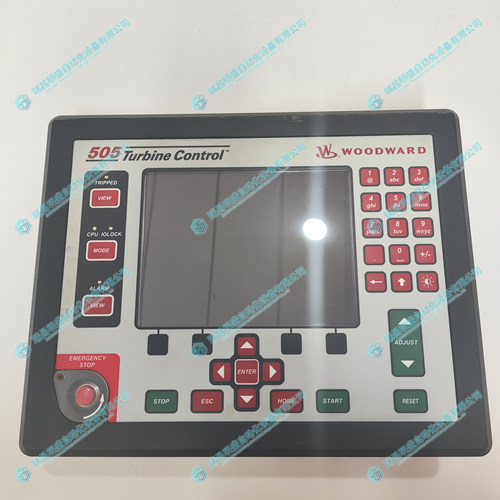

2.產 品 展 示
