REXROTH VT-VPCD-1-16/V0/1-P-1 R901089559放大器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
REXROTH VT-VPCD-1-16/V0/1-P-1 (R901089559) 放大器模塊 是博世力士樂（Bosch Rexroth）公司生產的一款用于工業自動化控制系統中的放大器模塊，主要用于調節和驅動電液伺服閥、比例閥等執行機構，以實現高精度的流量和壓力控制。該模塊在液壓系統中非常關鍵，尤其是在需要精密控制的場合，如自動化機械、機器人、航天等領域。
主要功能與特性：
信號放大與轉換：
- VT-VPCD-1-16/V0/1-P-1 放大器模塊 主要用于對輸入信號進行放大，將微弱的控制信號（例如從控制器或傳感器輸出的電壓信號）放大到足夠驅動電液比例閥或伺服閥的水平。這樣，模塊就能控制液壓系統中的流量、壓力和位置等參數。
- 它的工作原理是將輸入的電信號轉化為適合驅動液壓閥的電流信號，確保液壓執行機構按照設定值精確地操作。
高精度控制：
- 該放大器模塊具有高精度的信號轉換和調節能力，適用于需要高精度位置、速度和壓力控制的液壓系統中。
- 通過精確控制液壓閥的開度，可以確保液壓系統的穩定性和響應速度，尤其是在高速和高精度應用中。
寬范圍的輸入信號：
- VT-VPCD-1-16/V0/1-P-1 放大器模塊 支持多種輸入信號類型，通常包括模擬電壓信號（如 0-10V 或 4-20mA），以及其他工業常見的信號類型。這使得模塊能夠兼容各種控制系統，并能夠與不同類型的液壓控制系統聯動。
- 它支持寬輸入電壓范圍，因此可以與各種標準的工業自動化控制系統集成，適應不同應用需求。
多種保護功能：
- 過流保護、過溫保護和短路保護等多種安全保護功能可以有效防止模塊和其他系統元件在發生故障時受到損壞。
- 該模塊能夠實時監測其工作狀態，在出現異常情況時自動斷開或調節工作模式，確保系統不會因為放大器模塊的故障導致更大的問題。
精確調節與響應速度：
- 該放大器模塊設計用來提供高速響應和穩定性，適合用于要求較高動態性能的應用場景。它能夠快速響應控制信號的變化，確保液壓系統中的伺服閥和比例閥能夠在最短的時間內作出調整。
溫度與環境適應性：
- 該模塊具備較強的環境適應能力，能夠在一定的溫度范圍內正常工作。其設計符合工業標準，能夠在高溫、低溫及震動等工業環境中穩定運行。
- 其高可靠性使得它在惡劣環境下仍能穩定提供放大功能，確保液壓系統持續高效工作。
模塊化設計：
- VT-VPCD-1-16/V0/1-P-1 是一款模塊化設計的放大器模塊，方便在復雜的自動化控制系統中進行安裝、維護和更換。其設計通常具有良好的兼容性和靈活性，可以適配不同的液壓系統和應用需求。
英文資料：
The REXROTH VT-VPCD-1-16/V0/1-P-1 (R901089559) amplifier module is an amplifier module produced by Bosch Rexroth for use in industrial automation control systems. It is mainly used to regulate and drive actuators such as electro-hydraulic servo valves and proportional valves to achieve high-precision flow and pressure control. This module is crucial in hydraulic systems, especially in applications that require precise control, such as automation machinery, robotics, aerospace, and other fields.
Main functions and features:
Signal amplification and conversion:
The VT-VPCD-1-16/V0/1-P-1 amplifier module is mainly used to amplify input signals, amplifying weak control signals (such as voltage signals output from controllers or sensors) to a level sufficient to drive electro-hydraulic proportional valves or servo valves. In this way, the module can control parameters such as flow rate, pressure, and position in the hydraulic system.
Its working principle is to convert the input electrical signal into a current signal suitable for driving the hydraulic valve, ensuring that the hydraulic actuator operates accurately according to the set value.
High precision control:
This amplifier module has high-precision signal conversion and adjustment capabilities, suitable for hydraulic systems that require high-precision position, speed, and pressure control.
By precisely controlling the opening of the hydraulic valve, the stability and response speed of the hydraulic system can be ensured, especially in high-speed and high-precision applications.
Wide range input signal:
The VT-VPCD-1-16/V0/1-P-1 amplifier module supports multiple input signal types, typically including analog voltage signals (such as 0-10V or 4-20mA), as well as other common industrial signal types. This enables the module to be compatible with various control systems and can be linked with different types of hydraulic control systems.
It supports a wide input voltage range, so it can be integrated with various standard industrial automation control systems to meet different application requirements.
Multiple protection functions:
Multiple safety protection functions such as overcurrent protection, over temperature protection, and short circuit protection can effectively prevent modules and other system components from being damaged in the event of a malfunction.
This module can monitor its working status in real time and automatically disconnect or adjust its working mode in case of abnormal situations, ensuring that the system will not cause greater problems due to amplifier module failures.
Accurate adjustment and response speed:
This amplifier module is designed to provide high-speed response and stability, making it suitable for applications that require high dynamic performance. It can quickly respond to changes in control signals, ensuring that the servo valves and proportional valves in the hydraulic system can be adjusted in the shortest possible time.
Temperature and environmental adaptability:
This module has strong environmental adaptability and can work normally within a certain temperature range. Its design complies with industrial standards and can operate stably in industrial environments such as high temperature, low temperature, and vibration.
Its high reliability enables it to provide stable amplification function even in harsh environments, ensuring the continuous and efficient operation of the hydraulic system.
Modular design:
VT-VPCD-1-16/V0/1-P-1 is a modular design amplifier module that facilitates installation, maintenance, and replacement in complex automation control systems. Its design usually has good compatibility and flexibility, and can adapt to different hydraulic systems and application requirements.

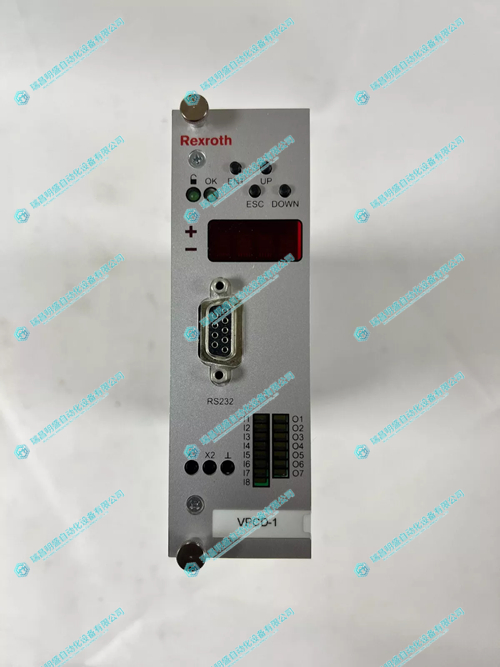

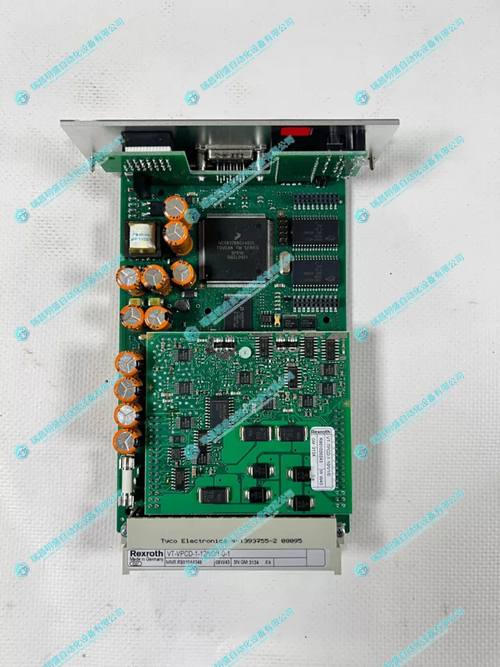

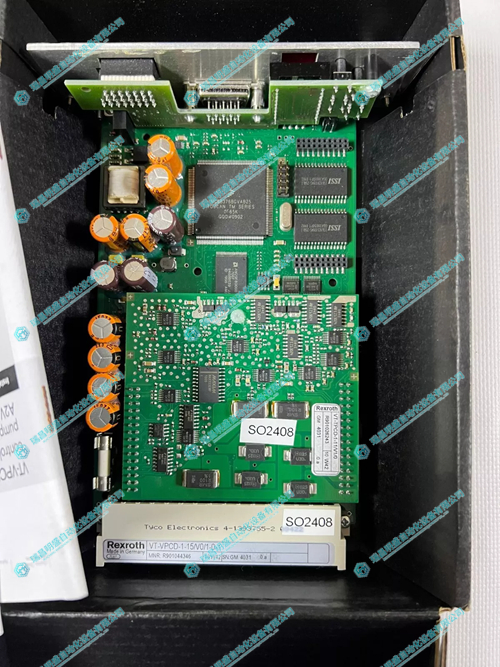

2.產 品 展 示
