TRICONEX 3704E 數字量輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TRICONEX 3704E 數字量輸入模塊
概述：
TRICONEX 3704E 是一款高可靠性的數字量輸入模塊，屬于 Tricon 系列的安全控制系統模塊。它被設計用于關鍵任務和安全關鍵的工業環境，提供高可用性和三重冗余的輸入信號處理，確保系統的可靠運行。
主要特點：
三重冗余架構：
- 3704E 模塊采用了 TMR（Triple Modular Redundancy，三模冗余）技術，具有三套獨立的處理單元來采集和驗證輸入信號，從而提高系統的容錯能力，確保數據的準確性和可靠性。
高可靠性：
- 適用于安全關鍵系統，如緊急停車系統（ESD）、火災與氣體監控系統（F&G）、渦輪機控制系統等，能夠確保在高風險環境中的安全運行。
支持32通道數字輸入：
- 該模塊支持 32 路獨立的數字輸入信號，提供高密度信號采集能力，可監控和處理來自多個傳感器和開關的輸入。
熱插拔功能：
- 3704E 支持熱插拔功能，可以在不關閉系統的情況下更換模塊，減少停機時間，提高維護效率。
故障檢測和診斷：
- 模塊內置自檢功能，能夠持續監測系統的健康狀況，及時發現和報告故障，有助于提前預防問題的發生。
與Tricon系統兼容：
- 該模塊與 Triconex 系統的其他模塊和控制器完全兼容，能夠輕松集成到現有的控制系統中。
應用領域：
- 石油和天然氣行業
- 化工和制藥工業
- 電力和能源管理
- 過程自動化
- 核電站和重工業
優勢：
- 三重冗余設計確保了在安全關鍵應用中的高可靠性。
- 熱插拔功能減少了系統維護和升級時的停機時間。
- 通過內置的自檢和故障檢測機制，提高了系統的安全性和維護效率。
總結：
TRICONEX 3704E 數字量輸入模塊是一款專為高風險和安全關鍵環境設計的數字輸入模塊，具有高可靠性和高可用性。其三重冗余架構和豐富的診斷功能，使其成為工業自動化、能源管理以及安全系統中不可或缺的組件。
英文資料：
TRICONEX 3704E Digital Input Module
summary:
TRICONEX 3704E is a highly reliable digital input module belonging to the Tricon series of safety control system modules. It is designed for critical tasks and safety critical industrial environments, providing high availability and triple redundancy input signal processing to ensure reliable system operation.
Main features:
Triple redundant architecture:
The 3704E module adopts TMR (Triple Modular Redundancy) technology, and has three sets of independent processing units to collect and verify input signals, so as to improve the fault tolerance of the system and ensure the accuracy and reliability of data.
High reliability:
Suitable for safety critical systems such as emergency shutdown systems (ESD), fire and gas monitoring systems (F&G), turbine control systems, etc., ensuring safe operation in high-risk environments.
Supports 32 channel digital input:
This module supports 32 independent digital input signals, provides high-density signal acquisition capability, and can monitor and process inputs from multiple sensors and switches.
Hot swappable function:
3704E supports hot swapping function, which allows module replacement without shutting down the system, reducing downtime and improving maintenance efficiency.
Fault detection and diagnosis:
The module has built-in self checking function, which can continuously monitor the health status of the system, detect and report faults in a timely manner, and help prevent problems in advance.
Compatible with Tricon system:
This module is fully compatible with other modules and controllers of the Triconex system and can be easily integrated into existing control systems.
Application areas:
Oil and gas industry
Chemical and pharmaceutical industries
Electricity and Energy Management
process automation
Nuclear power plants and heavy industry
Advantages:
The triple redundancy design ensures high reliability in safety critical applications.
The hot plug function reduces downtime during system maintenance and upgrades.
By implementing built-in self checking and fault detection mechanisms, the security and maintenance efficiency of the system have been improved.
Summary:
The TRICONEX 3704E digital input module is a digital input module designed specifically for high-risk and safety critical environments, with high reliability and availability. Its triple redundant architecture and rich diagnostic functions make it an indispensable component in industrial automation, energy management, and security systems.

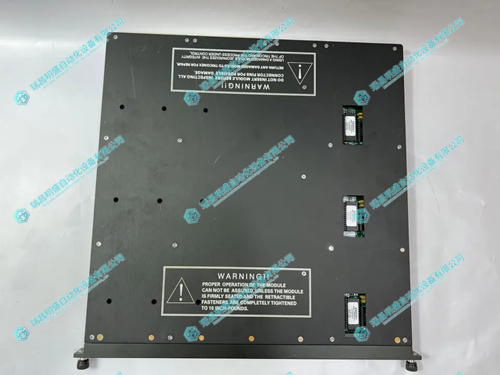

2.產 品 展 示
