WOODWARD 8200-1501發電機控制面板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
WOODWARD 8200-1501 是一款用于發電機的控制面板，專為高效管理和監控發電機運行而設計。這款控制面板集成了多種功能，能夠?qū)Πl(fā)電機的各種參數進行實時監控和控制，以確保發電機的安全、穩定運行。
主要特點和功能
實時監控：
- 該控制面板能夠?qū)崟r監控發電機的關鍵參數，如電壓、電流、頻率、功率因數等，確保發電機在最佳條件下運行。
自動控制：
- 提供多種自動控制功能，包括自動啟動/停止、負載管理、以及與其他發電機的并聯操作。這些功能確保發電機在需要時能夠迅速響應，并在不需要時高效關閉。
保護功能：
- 內置多種保護機制，如過壓、欠壓、過流、過載、短路等保護，防止發電機因異常狀況而損壞，并保護下游設備。
通信接口：
- 支持多種通信協議和接口，能夠與其他控制系統或監控設備進行數據交換，實現遠程監控和控制。
用戶友好的界面：
- 控制面板配備直觀的操作界面，通常包括 LCD 顯示屏和功能按鈕，便于用戶進行設置和查看發電機狀態。
事件記錄：
- 具備事件記錄和故障診斷功能，可以記錄發電機運行過程中發生的異常事件，為維護和故障排除提供依據。
技術規格
輸入電源：
- 控制面板的輸入電源通常為直流 24V，但也可能有其他選項，具體視型號而定。
操作溫度范圍：
- 設計適應嚴苛的工業環境，通常能夠在 -20°C 到 70°C 之間的溫度范圍內正常工作。
安裝方式：
- 一般為面板安裝，符合工業標準的控制柜或控制室配置。
英文資料：
WOODWARD 8200-1501 is a control panel designed for efficient management and monitoring of generator operation. This control panel integrates multiple functions, enabling real-time monitoring and control of various parameters of the generator to ensure its safe and stable operation.
Main features and functions
Real time monitoring:
This control panel can monitor key parameters of the generator in real-time, such as voltage, current, frequency, power factor, etc., to ensure that the generator operates under optimal conditions.
Auto-Control:
Provide multiple automatic control functions, including automatic start/stop, load management, and parallel operation with other generators. These functions ensure that the generator can respond quickly when needed and efficiently shut down when not needed.
Protection function:
Built in multiple protection mechanisms, such as overvoltage, undervoltage, overcurrent, overload, short circuit, etc., to prevent damage to the generator due to abnormal conditions and protect downstream equipment.
Communication interface:
Supports multiple communication protocols and interfaces, and can exchange data with other control systems or monitoring devices to achieve remote monitoring and control.
User friendly interface:
The control panel is equipped with an intuitive operating interface, usually including an LCD display screen and function buttons, making it easy for users to set up and view the status of the generator.
Event record:
Equipped with event recording and fault diagnosis functions, it can record abnormal events that occur during the operation of the generator, providing a basis for maintenance and troubleshooting.
technical specifications
Input power supply:
The input power supply for the control panel is usually 24V DC, but there may be other options depending on the model.
Operating temperature range:
Designed to adapt to harsh industrial environments, it typically operates normally within a temperature range of -20 ° C to 70 ° C.
Installation method:
Generally, it is installed on panels and equipped with control cabinets or control rooms that comply with industrial standards.

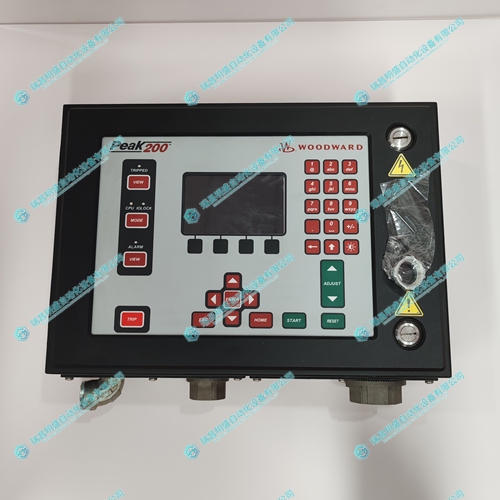

2.產 品 展 示
